The following are engineering drawings of the Hiroshima Prefectural Commercial Exhibition Hall and photographic survey drawings of the Atomic Bomb Dome. One can see the destruction of the building by the atomic bomb.

Schematic Drawings

Hiroshima Prefectural Commercial Exhibition Hall (before the bombing)

front

Drawings a1 of the Atomic Bomb Dome

side

Drawings b1 of the Atomic Bomb Dome

back

Drawings c1 of the Atomic Bomb Dome

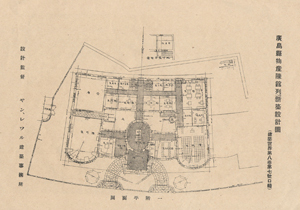

first floor plan view

Drawings d1 of the Atomic Bomb Dome

second floor plan view

Drawings e1 of the Atomic Bomb Dome

Atomic Bomb Dome (after the bombing)

front

Drawings a2 of the Atomic Bomb Dome

side

Drawings b2 of the Atomic Bomb Dome

back

Drawings c2 of the Atomic Bomb Dome

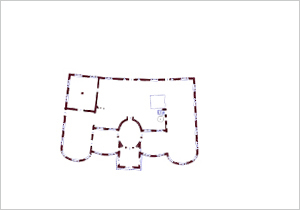

first floor plan view

Drawings d2 of the Atomic Bomb Dome

second floor plan view

Drawings e2 of the Atomic Bomb Dome


*Engineering drawings of the Hiroshima Prefectural Commercial Exhibition Hall are property of the Hiroshima Peace Memorial Museum, donated by Hitoshi Usui.
